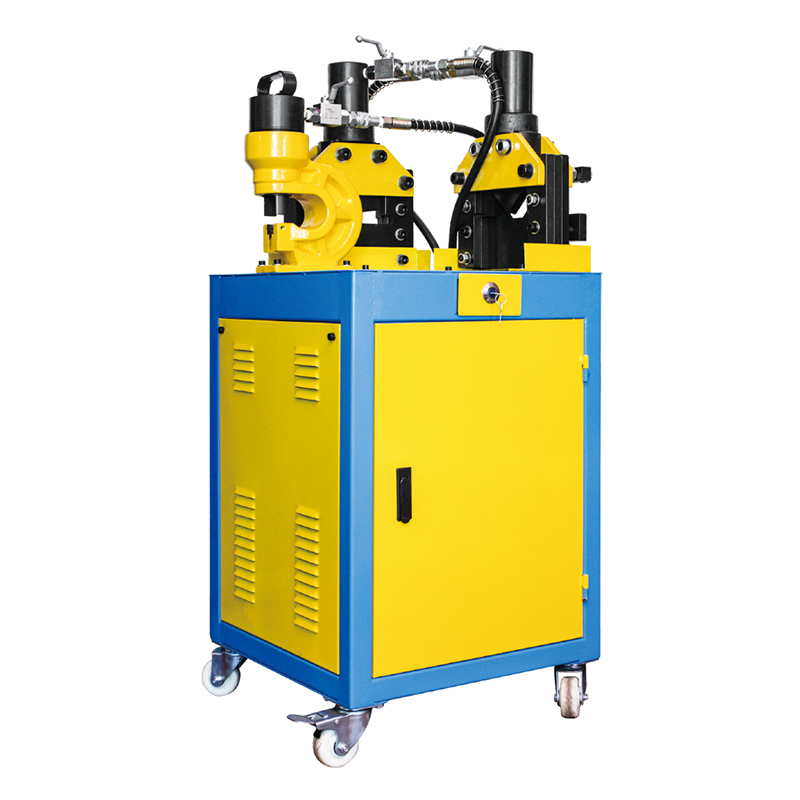

产品名称：XFJGJ三合一角钢加工机

产品说明：

技术参数TECHNICAL DATA:

功能(Functions):切断,冲孔,切角(Cut off, punch,cut corner)

电压(Voltage):220V/380V

油压(Oil pressure):700kgf/cm²

切排机出力(Output of cutting machine):35T

切排能力(Bus bar cutting capability) :150mmx10mm

冲孔机出力(Output of bus bar cutter):30T

喉深(Depth of throat):95mm

标配模具(Standard setting):Φ10.5,Φ13.8,Φ17.5,Φ20.5mm

冲孔能力(Punching capacity):Φ10.5-Φ20.5mm

角钢切角出力(Output of bending machine): 35T

切角能力(Bending capacity):50mmx50mmx5mm

重量(Weight):170kg
