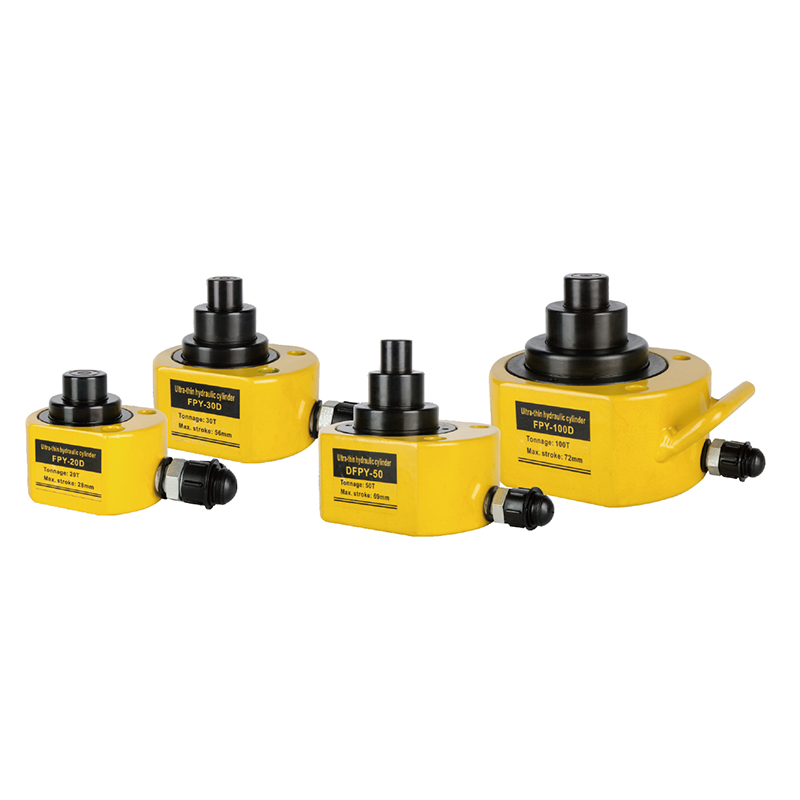

产品名称：多节超薄型液压千斤顶
产品说明：
| 型号 (Model) | 吨位(Tonnage) | 多节行程(Stroke) | 活塞接触面直径(Piston contact surface diameter) | 缸体尺寸 (Cylinder size) | 本体高度 (Height | ||||||
| 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | |||
DFPY-10 | 10T | 4T | — | 10mm | 18mm | — | Φ38mm | Φ26mm | — | 83×65mm | 52mm |
| DFPY-20 | 20T | 5T | — | 12mm | 20mm | — | Φ50mm | Φ31mm | — | 99×80mm | 58mm |
| DFPY-30 | 30T | 14T | 4T | 14mm | 22mm | 24mm | Φ65mm | Φ46mm | Φ26mm | 118×100mm | 64mm |
| DFPY-50 | 50T | 20T | 5T | 18mm | 28mm | 30mm | Φ80mm | Φ50mm | Φ30mm | 148×128mm | 72mm |
| DFPY-100 | 100T | 45T | 14T | 20mm | 31mm | 33mm | Φ110mm | Φ80mm | Φ38mm | 188×165mm | 88mm |
