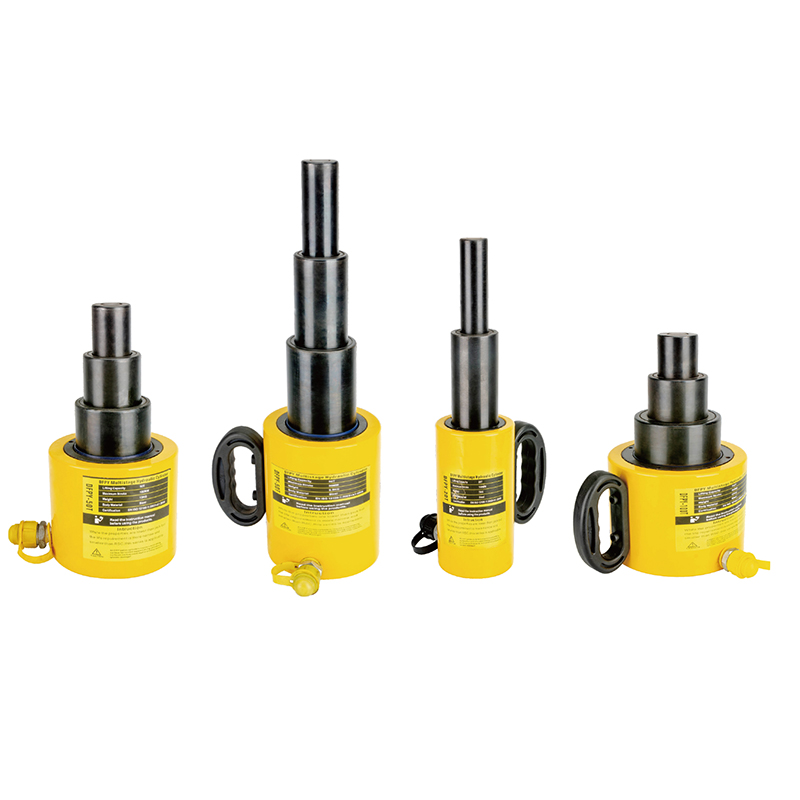

产品名称：多节短型/长型液压千斤顶
产品说明：
| 型号 (Model) | 吨位 (Tonnage) | 节数 (Pitch number) | 行程 (Stroke) | 本体高度 (Height) | 总高 (Overall height) | 外径 (External diameter) | 主轴直径 (Spindle diameter) | 重量 (Weight | |
| 短型 | DFPY-20 | 20T | 两节 | 100mm | 105mm | 205mm | Φ88mm | 54mm | 4.8kg |
DFPY-30 | 30T | 两节 | 100mm | 110mm | 210mm | Φ103mm | 68mm | 7kg | |
DFPY-50 | 50T | 三节 | 150mm | 113mm | 263mm | Φ118mm | 85mm | 9.5kg | |
DFPY-100 | 100T | 三节 | 150mm | 130mm | 280mm | Φ178mm | 110mm | 22kg | |
| 长型 | DFPY-20 | 20T | 两节 | 200mm | 155mm | 355mm | Φ83mm | 58mm | 7kg |
DFPY-30 | 30T | 两节 | 200mm | 160mm | 360mm | Φ103mm | 68mm | 9.5kg | |
DFPY-50 | 50T | 三节 | 300mm | 165mm | 465mm | Φ118mm | 85mm | 11kg | |
| DFPY-100 | 100T | 三节 | 300mm | 180mm | 480mm | Φ178mm | 110mm | 22kg | |
