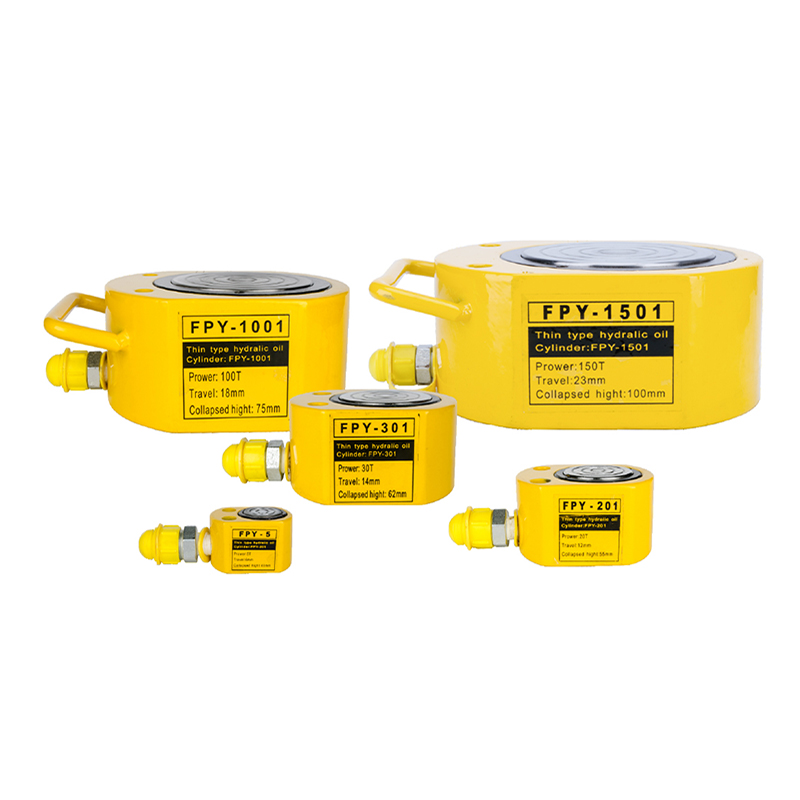

产品名称：超薄型液压千斤顶
产品说明：
型号 (Model) | 吨位 (Tonnage) | 行程 (Stroke) | 本体高度 (Height) | 总高 (Overall height) | 外径 (External diameter) | 内径 (Bore size) | 主轴直径 (Spindle diameter | 重量 (Weight) |
FPY-5 | 5T | 6mm | 40mm | 48mm | Φ64×48mm | Φ35mm | 30mm | 1.09kg |
FPY-101 | 10T | 10mm | 50mm | 62mm | Φ83×65mm | Φ45mm | 38mm | 2.18kg |
FPY-201 | 20T | 12mm | 56mm | 70mm | Φ94×80mm | Φ60mm | 50mm | 3.28kg |
FPY-301 | 30T | 14mm | 62mm | 76mm | Φ118×100mm | Φ75mm | 65mm | 4.7kg |
FPY-501 | 50T | 16mm | 70mm | 88mm | Φ148×128mm | Φ99mm | 80mm | 8kg |
FPY-1001 | 100T | 22mm | 86mm | 108mm | Φ188×156mm | Φ135mm | 110mm | 16.5kg |
FPY-1501 | 150T | 23mm | 100mm | 123mm | Φ228×200mm | — | — | — |
| FPY-2001 | 200T | 25mm | 106mm | 131mm | Φ218×236mm | Φ190mm | 160mm | 40kg |
