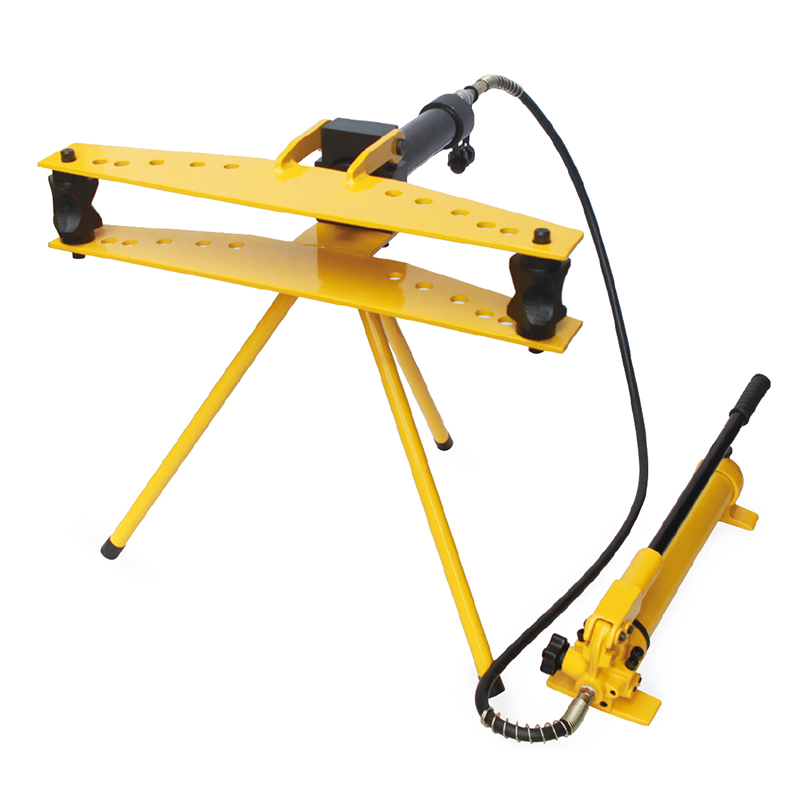

产品名称：CPB系列分体液压弯管机
产品说明：
型号 (Model) | 出力 (Output) | 行程 (Stroke) | 弯曲范围 (Bending range) | 标配模具 (Standard setting) | 管材壁厚 (Pipe wall thickness) | 重量 (Weight) |
CPB-1F | 10T | 170mm | Φ13-Φ34mm | 1/4",5/16",3/8",1/2",3/4",1"in | 2-3.5mm | 22kg |
| CPB-2F | 13T | 250mm | Φ21.3-Φ60mm | 1/2",3/4",1",11/4",1-1/2",2"in | 2.75-4.5mm | 50kg |
| CPB-3F | 20T | 290mm | Φ21.3-Φ88.5mm | 1/2",3/4",1",11/4",11/2",2",3"in | 2.75-5mm | 112kg |
| CPB-4F | 23T | 370mm | Φ21.3-Φ108mm | 1/2",3/4",1",11/4",11/2",2",3",4"in | 2.75-6mm | 157kg |
| FWG-1 | 10T | 170mm | Φ13-Φ34mm | 1/4",5/16",3/8".1/2",3/4",1"in | 2-3.5mm | 22kg |
| FWG-2 | 9T | 250mm | Φ21.3-Φ60mm | 1/2",3/4",1",11/4",11/2",2"in | 2.75-4.5mm | 49kg |
| FWG-3 | 19T | 290mm | Φ21.3-Φ88.5mm | 1/2",3/4",1",11/4",11/2",2",3"in | 2.75-5mm | 104kg |
| FWG-4 | 21T | 370mm | Φ21.3-Φ108mm | 1/2",3/4",1",11/4",11/2",2",3",4"in | 2.75-6mm | 145kg |
